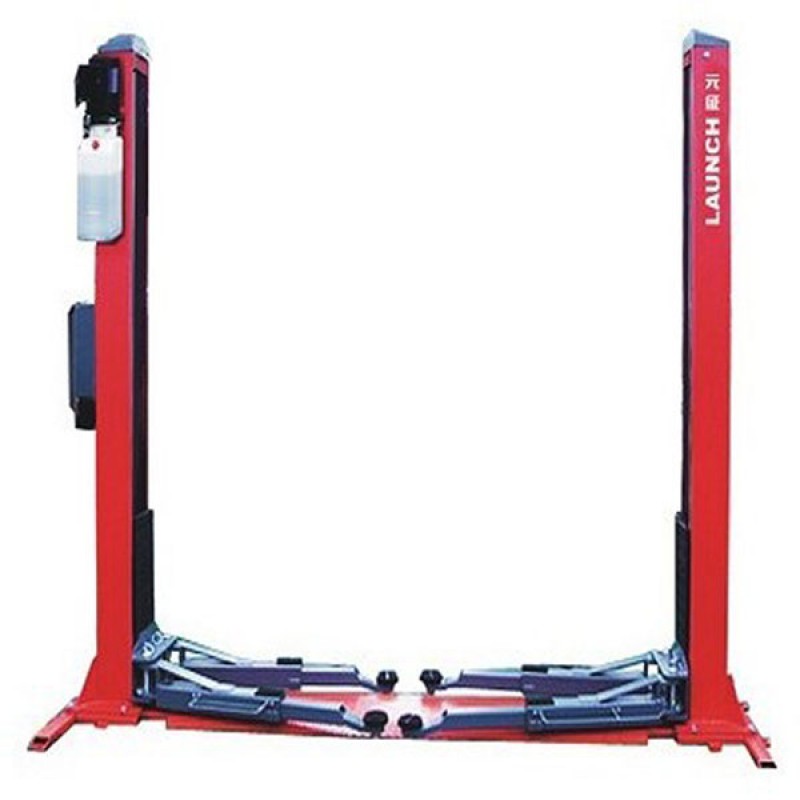

Launch TLT240SB(A) Standard 4T Floorplate Two Post Lift 4T

$1,899.00

Looking for help? or Get More Discount
Please contact WhatsApp: +1 937 888 0032
  • Brand: Launch
  • Product Code: UO06
  • Availability: In Stock
  • Weight: 62kg
  • Ex Tax: $1,899.00

Tags: Standard 4T Floorplate, Launch Standard

Launch TLT240SB(A) Standard 4T Floorplate Two Post Lift 4T

Launch TLT240SB(A) Standard 4T Floorplate Two Post Lift 4T Functions and Features

Designed and based on the international standard, meeting the demand of the garage and workshop.
The cable and oil pipe are fully concealed, with decent and elegant appearance.
Top limit switch, effectively protecting the vehicle from overhead collision.
Dual hydraulic cylinders drive, stable lifting and lowering.
Electromagnetic full-scope safety lock.
Lowering electrically, safe and simple in operation.
Adopt two steel cables for equalization, force two carriages to move synchronously, and effectively prevent the vehicle from tilting.
Lowest height of lifting pad is 110mm, good for repairing low chassis or low profile car.

Launch TLT240SB(A) Standard 4T Floorplate Two Post Lift 4T Specification

Capacity  4 TON (9000 lbs)
Lifting height  1950 mm (76.8inch)
Lifting time  50 Sec
Lowering time  40 Sec
Motor power  2.2 kw
Passing width  2486 mm (97.9 inch)
Overall width  3370 mm (132.7 inch)
Overall height  2860 mm (112.6 inch)

Launch TLT240SB(A) Parameter:

Working noise: ≤80dB(A)
Power unit:
Working pressure: 16MPa (TLT235SBA)
18MPa (TLT240SBA)
Electrical parameters of the machine:
Motor:
Three phase: 230V/60Hz 2.2kw; 380V/50Hz 2.2kw
Single phase: 110V/60Hz 2.2kw; 220V/60Hz 2.2kw
220V/50Hz 2.2kw

Environmental Requirement

Working temperature: -5°C ~+40°C
Transport/storage temperature: -5°C ~+40°C
Relative humidity: Temperature +30°C, relative humidity 80%
Height above sea level: No more than 2000m

Packing List:

1set x Launch TLT240SB(A) Standard 4T Floorplate Two Post Lift 4T
